This was the single most stressful decision of my entire attic conversion. And nobody warned me about it.
Everyone talks about insulation, Velux windows, costs. Nobody talks about the waste pipe. But it's the one thing that dictates where your ensuite can actually go - and getting it wrong is expensive, messy, and potentially very unpleasant to live with.
The problem, simply explained
Most people assume the ensuite goes at the back of the attic, under the small Velux windows, where the builder sketches it on the plan. It makes intuitive sense - the windows provide ventilation and light, and the lower ceiling height is fine for a shower.
But here's the thing nobody mentions: the toilet needs to connect to your house's main waste stack. That's the big vertical pipe - usually 110mm PVC - that runs down the outside of your house and carries all the waste from your existing bathrooms to the drain.
Toilet waste starts at floor level. It relies on gravity to flow downhill through the pipe to reach the stack. That means you need a continuous downward gradient from the toilet to the stack connection point. The further the ensuite is from the stack, the harder it is to achieve that gradient - especially in an attic where the floor void is limited.
The key question
Where is your waste stack? It might not be where you think. Ours was at the front of the house, not the back. That single fact changed our entire attic layout.
How to find your waste stack

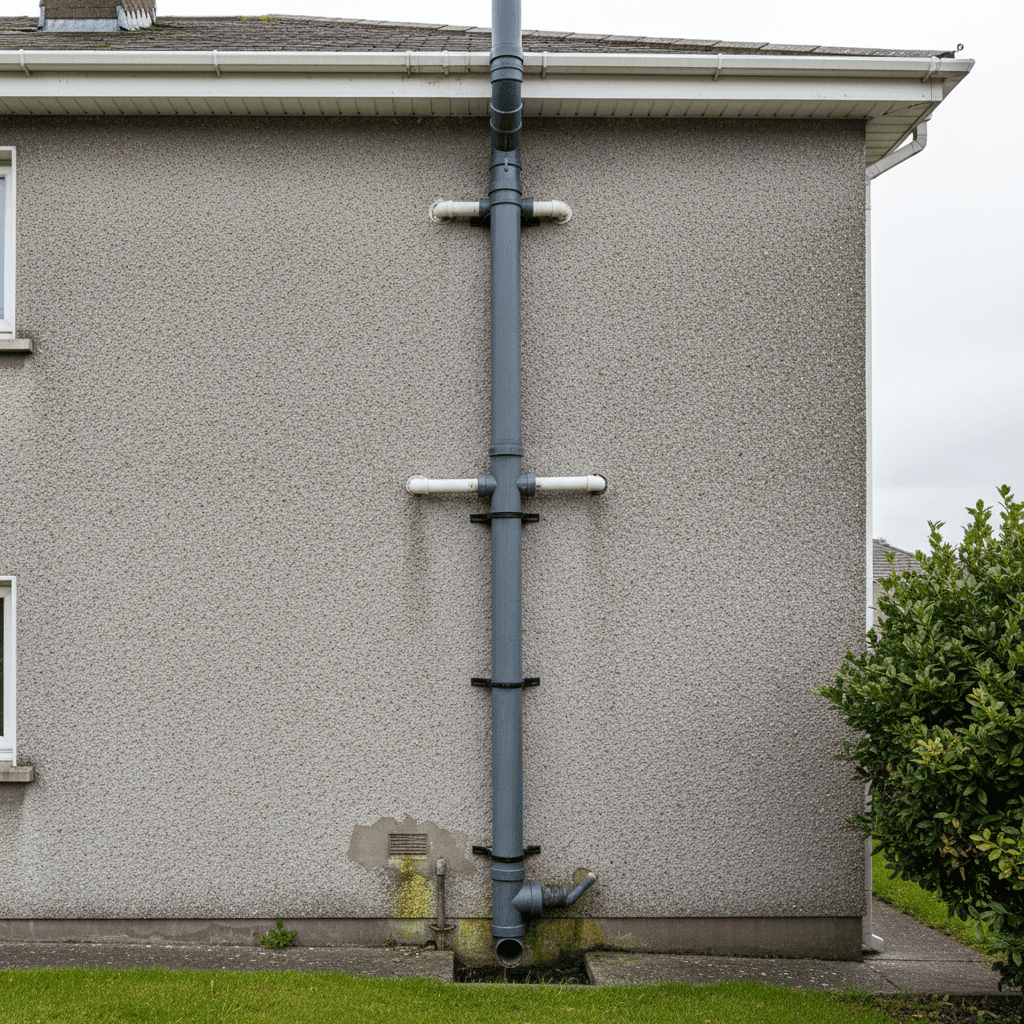

Before you talk to a single builder, go outside and look at your house. Walk around every side. You're looking for a large vertical pipe - typically 110mm diameter, black or grey PVC - running from ground level up past first-floor bathroom windows to the roofline. It will have junction connections where your existing bathroom waste pipes feed into it.
In most Dublin semi-detached and terraced houses, it's on the side or rear wall. But it varies. In newer builds, it can be at the front. In older houses, it might even be internal. The point is: don't assume. Go look.
Once you know where the stack is, you know the one fixed point your entire ensuite layout has to work around. Everything else is flexible - including where your water tank gets relocated to. The waste stack is not.
Gravity flow vs macerator pump
There are two ways to get toilet waste from your attic ensuite to the waste stack. One is simple and reliable. The other works, but comes with real risks you need to understand.
The toilet waste pipe runs at a downward gradient from the ensuite to the waste stack. No moving parts. No electricity needed. Silent. It either works or it doesn't - and whether it works depends entirely on the distance and route between your ensuite and the stack.
For gravity flow, you typically need a gradient of at least 1:40 (a fall of 1cm for every 40cm of pipe run). The shorter the distance, the easier this is. If your ensuite sits directly above or near the waste stack, gravity flow is almost always achievable.
Ask this question early
The single most important question to ask your builder: "Can we achieve gravity flow for the toilet waste, or will we need a macerator?" If they say macerator, ask if there's any layout that avoids it. If there isn't, at least you know what you're signing up for.
What we actually did
Our waste stack was at the front of the house. The original plan had the ensuite at the back, under the Velux windows. When we looked at the pipe routing, gravity flow to the front of the house was not going to work - the distance was too far and the floor void too shallow for the gradient needed.
So we flipped the layout. The ensuite went to the front of the house, close to the waste stack. The kitchenette went to the back. This worked because kitchenette waste (sink, washing machine) is much easier to route - the waste pipe connects at a higher point, so you have more room for gradient and the pipe diameter is smaller (40mm vs 110mm for the toilet).
It was the right decision. But it wasn't without consequences.
The ventilation problem
Moving the ensuite away from the Velux windows meant it no longer had natural ventilation. Building regulations require mechanical ventilation for a windowless bathroom (this can also tie into your planning permission requirements) - an extractor fan that vents to outside, not just into the roof space.
This added cost and complexity. The fan needed ducting through the roof or eaves, and it needs to be wired to come on automatically with the light (or via a humidity sensor). It's not a deal-breaker, but it's something you need to plan for if your ensuite ends up away from the windows.
The vent pipe lesson we learned the hard way
Someone we know who went through an attic conversion had this exact problem. When the builders connected the new attic ensuite waste into the existing system, they connected it into what turned out to be the existing vent pipe - the pipe that allows air into the drainage system so waste flows smoothly.
The result: their first-floor bathroom now occasionally gets a sewage smell. Waste flowing down from the attic through a pipe that wasn't designed to carry it disrupts the air balance in the system. The first-floor bathroom's ventilation doesn't always kick in fast enough to clear it.
It's not constant, and it's not unbearable - but it's an irritation they didn't expect and wouldn't have had if the waste connection had been properly thought through from day one.
Lesson learned
Ask your builder specifically: "Where exactly will the new waste connect into the existing system? Is it connecting into the soil stack or the vent pipe?" They should be connecting into the soil stack, not the vent pipe. If they can't explain the difference clearly, that's a concern.
Keep your pipes accessible
This is something people rarely think about during the build, but will be very grateful for years later. Your attic ensuite waste pipes run through the floor void and typically route through the eaves/crawl space behind the knee walls before connecting to the stack. If something ever goes wrong - a blockage, a leak, a joint that loosens - you need to be able to get to those pipes without ripping up floors or tearing out walls.
Make sure the waste pipe run is accessible via your eaves storage hatches. Ideally, the toilet should be positioned close to the knee wall so the pipe route into the crawl space is short and reachable. If pipes are buried under a permanently sealed floor with no access panel, you're setting yourself up for an expensive headache down the line.
Practical tip
Ask your builder to ensure access panels or hatches are positioned so that all waste pipe junctions and connections can be reached for maintenance. A small access panel in the right place costs almost nothing during the build - but if you ever need it and it's not there, you'll be paying a plumber to cut through finished surfaces.
Common layout scenarios
Your waste stack location largely determines what's possible. Here are the common setups in Dublin houses:
You're in the easiest position. The ensuite can go at the back of the attic, under or near the Velux windows, with a short gravity run to the stack. Standard layout, minimal complications. Most builders will plan this without any prompting.
What to ask your builder
These questions should be part of your very first conversation with any builder quoting on your attic conversion. If they can't answer them confidently, or tell you they'll "figure it out during the build," consider that a warning sign.
"Where is my waste stack and where will the toilet waste connect?"
They should identify the stack location during the initial survey. If they haven't looked, they haven't done their homework.
"Can we achieve gravity flow, or will we need a macerator?"
This determines your ensuite position and has long-term maintenance implications. You need a clear answer, not a guess.
"Will the new waste connect to the soil stack or the vent pipe?"
It must connect to the soil stack. Connecting to the vent pipe can cause drainage and smell issues in your existing bathrooms.
"What are the ventilation options if the ensuite has no window?"
A windowless ensuite needs a mechanical extractor fan venting to outside. Check this is included in the quote and that ducting has been planned.
"What's the gradient on the waste pipe run?"
A good builder will know this. It should be at least 1:40 (1cm fall per 40cm). If they look puzzled by this question, that tells you something.
The bottom line
The waste pipe is boring. Nobody wants to think about it. But it's the single most important constraint on your attic ensuite layout, and the one most likely to cause problems if it's not addressed early.
Find your waste stack before you talk to builders. Tell them where it is on day one. Don't accept vague answers about where the waste will connect. And if they tell you a macerator is the only option, ask if there's any layout that avoids it - even if it means putting the ensuite somewhere unexpected.
We ended up with our ensuite at the front of the house instead of the back. It wasn't the plan. But it was the right call, and we'd make the same decision again. Gravity flow, no macerator, no mechanical pumps to fail. The ventilation fan is a minor trade-off compared to the alternative.
